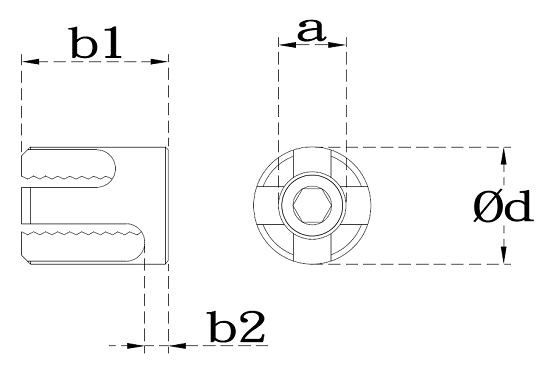

4802／Cross-shaped steel cable clamp
|
specification mm |
Steel cable Ø |
a mm |
b1 mm |
b2 mm |
Ød mm |
Price NT |
|
4802-2 |
2 |
M12 |
18 |
5 |
20 |
|
|
4802-3 |
3 |
M12 |
19 |
5 |
20 |
|
|
4802-4 |
4 |
M12 |
21 |
5 |
20 |
|
|
4802-5 |
5 |
M12 |
23 |
5 |
20 |
|
|
4802-6 |
6 |
M12 |
25 |
5 |
20 |
|
|
4802-9 |
9 |
M16 |
36 |
6 |
28 |
|
