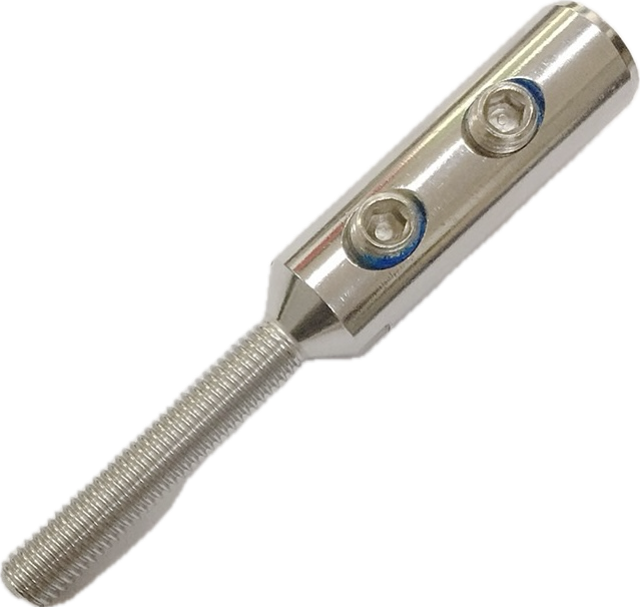

4816／Miniature terminal screw
|

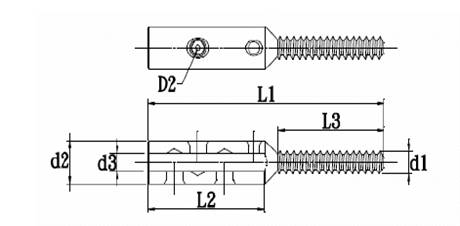

specification mm |
Steel cable Ø |
d1 mm |
d2 mm |
d3 mm |
L1 mm |
L2 mm |
L3 mm |
D2 mm |
Price NT |
|
4816-2 |
2 |
M4 |
8 |
2.4 |
50 |
25 |
20 |
M4 |
|
|
4816-3 |
3 |
M4 |
10 |
3.5 |
56 |
32 |
20 |
M4 |
|
|
4816-4 |
4 |
M5 |
12 |
4.5 |
65 |
34 |
25 |
M5 |
|
|
4816-5 |
5 |
M6 |
14 |
5.3 |
87 |
41 |
40 |
M6 |
|
|
4816-6 |
6 |
M6 |
15 |
6.3 |
90 |
44 |
40 |
M6 |
|
|
4816-8 |
8 |
M10 |
20 |
8.4 |
118 |
58 |
53 |
M10 |
|
|
4816-9 |
9 |
M10 |
20 |
9.5 |
118 |
58 |
53 |
M10 |
|
|
4816-10 |
10 |
M10 |
20 |
10.8 |
118 |
58 |
53 |
M10 |
|
|
4816-12 |
12 |
M12 |
22 |
13 |
128 |
65 |
56 |
M12 |
|
