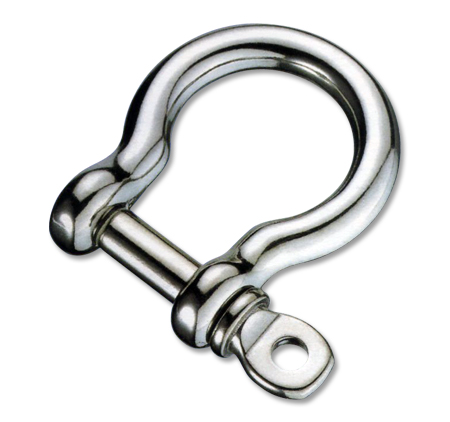

370S／Screw Pin Anchor Shackle
|

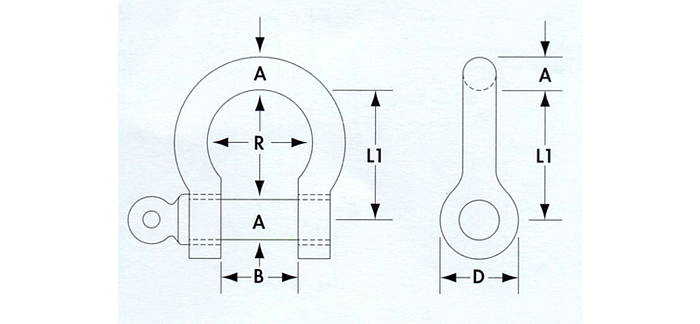

Specification A mm |
B mm |
R mm |
D mm |
L1 mm |
Price NT |
|
4 |
8 |
14 |
8 |
16 |
30.00 |
|
5 |
10 |
17 |
10 |
20 |
33.00 |
|
6 |
12 |
21 |
12 |
24 |
37.00 |
|
8 |
16 |
28 |
16 |
32 |
47.00 |
|
10 |
20 |
34 |
20 |
40 |
70.00 |
|
12 |
24 |
42 |
24 |
48 |
105.00 |
|
13 |
26 |
45 |
26 |
52 |
146.00 |
|
16 |
32 |
56 |
32 |
64 |
240.00 |
|
19 |
38 |
66 |
38 |
76 |
380.00 |
|
22 |
44 |
77 |
44 |
88 |
590.00 |
|
25 |
50 |
87 |
50 |
100 |
825.00 |
