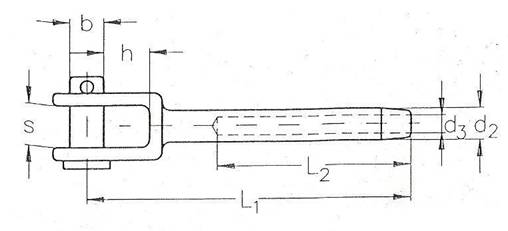

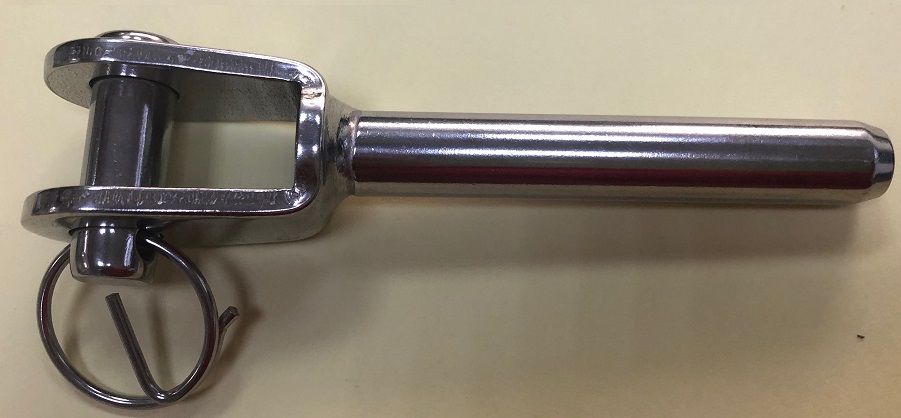

4819S／開口端子
|
規格 mm |
鋼索 Ø |
d2 mm |
d3 mm |
L1 mm |
L2 mm |
h mm |
s mm |
b mm |
單價 NT |
|
4819-3 |
3 |
6.3 |
3.3 |
67 |
38 |
10 |
10 |
6 |
|
|
4819-4 |
4 |
7.5 |
4.3 |
76 |
45 |
10 |
10 |
8 |
|
|
4819-5 |
5 |
9.0 |
5.3 |
85 |
52 |
12 |
14 |
10 |
|
|
4819-6 |
6 |
12.5 |
6.5 |
108 |
63 |
19 |
16 |
12 |
|
|
4819-8 |
8 |
16 |
8.6 |
135 |
80 |
19 |
16 |
12 |
|
|
4819-10 |
10 |
18 |
10.8 |
145 |
90 |
26 |
22 |
14 |
|
|
4819-12 |
12 |
22 |
13 |
220 |
120 |
41 |
27 |
16 |
|
|
4819-14 |
14 |
25 |
15 |
240 |
140 |
41 |
27 |
16 |
|
